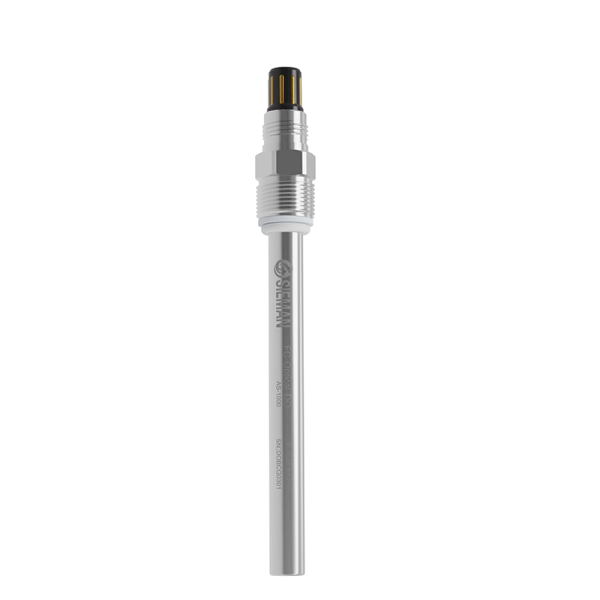

FC Optical DO Sensor

FC Optical DO Sensor allows accurate and timely monitoring of dissolved oxygen values, supports wireless Bluetooth connection to diagnose sensor status

SEND YOUR REQUESTS

Contact Form Demo (#3)



FC Optical DO Sensor Introduction





We have launched the high temperature resistant and accurate value reading optical dissolved oxygen sensor — FC Optical DO Sensor. This innovative product is designed for processes such as high temperature steam sterilization and CIP process, ensuring stable and reliable DO value reading under harsh conditions.



The FC optical dissolved oxygen sensor has a self-diagnostic function to inspect and report the status of the sensor in time, it improves the reliability and stability of the production process. And it uses an electrolyte-free design to avoid the impact of electrolyte changes on the measurement accuracy. In addition, our sensors require no polarization time to respond quickly and perform dissolved oxygen measurements, increasing production efficiency.





FC Optical DO Sensor Principle

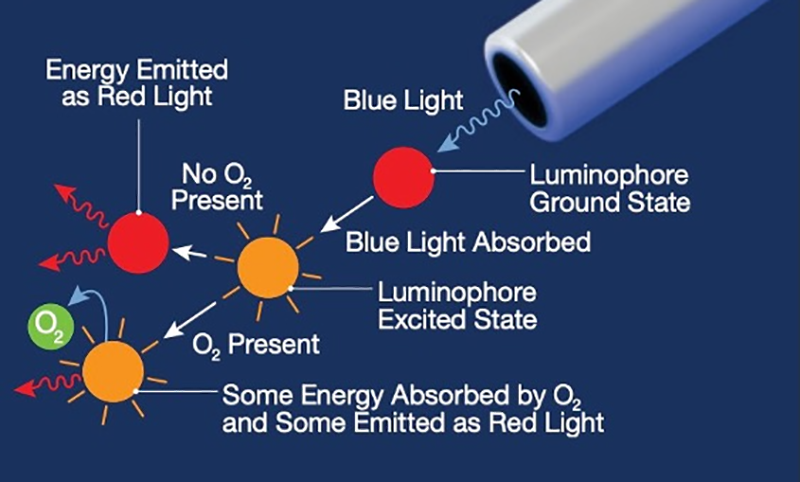

Sieman FC optical DO sensor is working on the principle of fluorescence quenching as shown in the following picture:

FC Optical Sensor Summarize 4





FC Optical DO Sensor Features

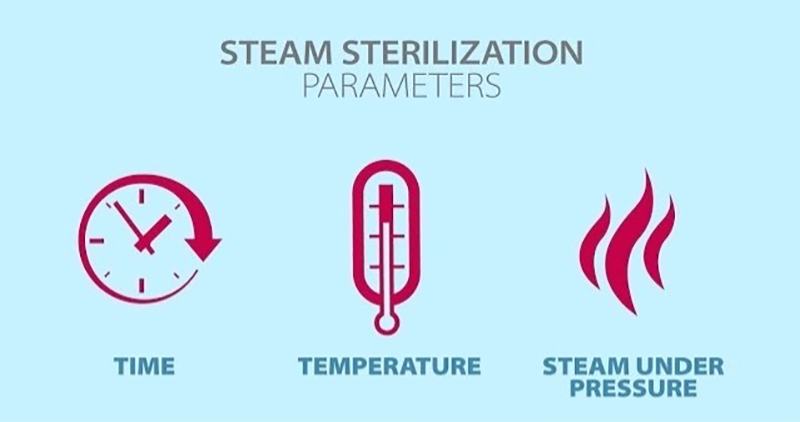

1.High temperature design: specially designed for multiple high temperature steam sterilization and cleaning (CIP) processes, to ensure stable and reliable reading under harsh conditions.

FC Optical Sensor Summarize (2)

2.Self-diagnosis: with self-diagnosis function, automated search and report the sensor status in time, improve the reliability and stability of the production process.

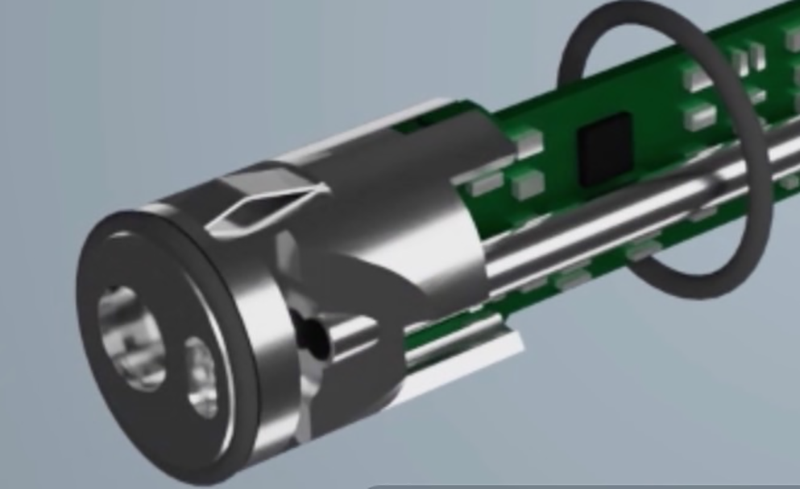

FC Optical Sensor Summarize (3)

3.No electrolyte: the electrolyte-free design to avoid the impact of electrolyte changes on the measurement accuracy, to ensure continuous and stable measurement performance.

4.No polarization time: no need to wait for the polarization time, quickly respond and measure dissolved oxygen, improve production efficiency.

5.Easy to replace optical oxygen cap: optical oxygen cap is easy to replace, convenient maintenance.

6.Start intelligent: provide digital and analog signal output, suitable for different monitoring and control systems to meet diverse needs.

7.ECS mode optional: With ECS mode, similar to Clark method simulation, providing more testing and control options.

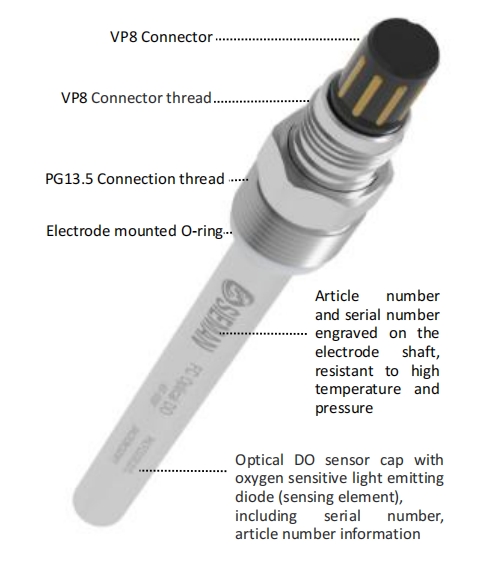

FC Optical DO Sensor Structure



微信截图 20240819104520

The Sieman optical dissolved oxygen sensor consists of an induction VP connector with integrated internal circuit, PG13.5 thread, O-ring, sensor probe rod, and optical dissolved oxygen sensor cartridge connected to the sensor shaft.

The sensor cartridge is composed of oxygen sensitive luminescent group material, light transmittable glass, and isolation layer material. The isolation layer has no dissolved substance during contact with the liquid, and the material meets the safety production requirements. The stainless steel surface of the sensor shaft is completely polished, the material is strong and pressure resistant, and it also meets the relevant requirements of safety production. The overall design also meets the health standards. Motor shaft stainless steel heat goods number also withstands high temperature and pressure without any damages.





FC Optical DO Sensor Technical Parameter

Sensor Type Optical Dissolved Oxygen
Length 120/160/225/325/425 mm
Circuit connector VP8
Principle Fluorescence quenching
Measuring range 0~300 %-Sat

4~25ppm(DO)             0~62.85%-vol

Accuracy

(25℃)

1±0.05 %-vol;

21±0.2 %-vol;

50±0.5 %-vol.

Drift at RT < 1 % per week
Temperature sensor NTC 22 KOhm
Configurable unit %-sat;

%-vol;

mbar;

µg/L (ppb);

mg/L (ppm);

Diameter 12mm
Connect type PG13.5
Liquid contact component material Stainless steel 316L

PTFE

EPDM

Stainless steel surface polishing Ra < 0.4 µm (N5)
Analog interface ECS(nA), 4-20mA
Digital interface RS485
Baud rate 4800, 9600, 19200, 38400, 57600, 115200
Working voltage 12~30 VDC
Response time t98% < 60 s ( 25 °C)
Certificate Including factory certification, material testing, etc
SIP Support, tolerate 130℃
CIP Support
Operating temperature range -10 ~ 140℃;

not provide DO readings above 60°C

Pressure range -1 ~ 12 bar

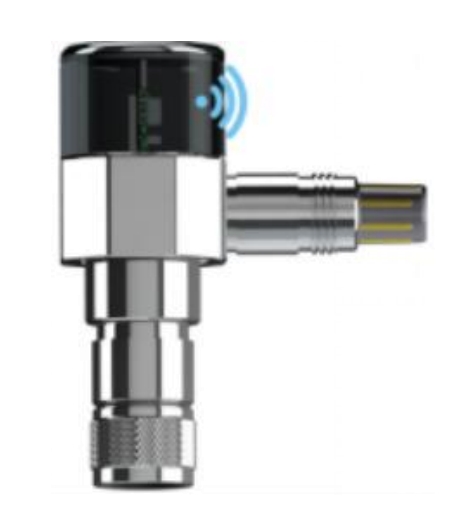

BW-01 wireless adapter

微信截图 20240819140459

Sieman BW-01 Wireless Adapter provides wireless communication between Sieman optical dissolved oxygen sensors and Sieman pH smart sensors to mobile devices or computers via Bluetooth low power consumption 5.0 or 2.4GHz Wi-Fi (802.11 b/g/n).

After installing the “Sieman Sensor APP” on your mobile device or computer and connecting it, you can view the sensor’s information, real-time measurement data and current status, it can also calibrate the sensor and configure the sensor parameters. The adapter supports both analog and digital signals of the sensor while transmitting smoothly, it is designed for immediate installation and immediate use, compatible with Sieman optical dissolved oxygen sensors with VP connectors and pH intelligent sensors.



Here is the video about how to calibrates and reads the sensor information by using a mobile device connected to a wireless Bluetooth adapter.



FC Optical DO Sensor Order Information



Product Name Art. No.
AS-1000 Optical DO Sensor 120 FCDO ECS 12 120
AS-1000 Optical DO Sensor 160 FCDO ECS 12 160
AS-1000 Optical DO Sensor 225 FCDO ECS 12 225
AS-1000 Optical DO Sensor 325 FCDO ECS 12 325
AS-1000 Optical DO Sensor 425 FCDO ECS 12 425
AS-3000 Optical DO Sensor 120 FCDO 420 12 120
AS-3000 Optical DO Sensor 160 FCDO 420 12 160
AS-3000 Optical DO Sensor 225 FCDO 420 12 225
AS-3000 Optical DO Sensor 325 FCDO 420 12 325
AS-3000 Optical DO Sensor 425 FCDO 420 12 425
Sensor membrane cap sealed O-ring MPO2002
Sensor installation sealed O-ring MPO2003
Biofluorescence DO Sensor Cap MPO2004
VP Cable 1M PJ-VP-0001
VP Cable 3M PJ-VP-0003
VP Cable 5M PJ-VP-0005
VP Cable 10M PJ-VP-0010
VP Cable 15M PJ-VP-0015
VP Cable 20M PJ-VP-0020
VP Cable 30M PJ-VP-0030
