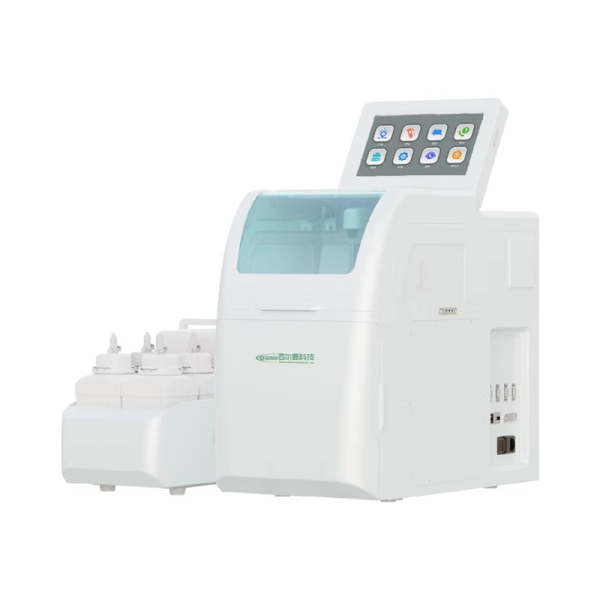

M-1000 Bioprocess Biochemistry Analyzer

M-1000 Bioprocess biochemistry analyzer is highly integrated, cost-effective, accurate and precise, it is a good tool for process analysis

GET A FREE QUOTE

SEND MAIL

M-1000 Bioprocess Biochemistry Analyzer Introduction

The M-1000 Bioprocess biochemistry analyzer is cost-effective, easy to use with integrated calibration reagent kits, optional dilution mode. The sample rack of M-1000 analyzer has 10 sample loading positions, up to 4 biochemical parameters and 5 ionic parameters can be tested simultaneously.

Compared to the M-900 plus analyzer, the M-1000 bioprocess biochemistry analyzer simplifies the calibration of the standard solution and provides a comprehensive upgrade of the software and hardware, while being more cost-effective and easy-operation.

Below is a demonstration video of M-1000 analyzer construction:

Test Parameters:

Glucose, Lactate, Glutamate, Lysine, Ethanol, Methanol, Glutamine, Glycerol, Xylose, Sucrose, pH, NH4+, K+, Na+, Ca2+, etc.

The Principle of M-1000 Bioprocess Biochemistry Analyzer

This device is available for detecting the concentration of the test sample by use of the specially designed bio-oxidase membrane electrochemical sensor.

M-1000 Bioprocess biochemistry analyzer could automatically collect samples and import them into the test area. The test substance contained in the sample will undergo an enzymatic hydrolysis reaction under the catalysis of an immobilized bio-oxidase to generate hydrogen peroxide. The concentration of the test substance is calculated by the hydrogen peroxide concentration that is generated in the detection of hydrogen peroxide electrode.

The device can calibrate a standard solution with a known concentration, and the voltage value of the standard solution is a measure of the concentration of the test substance. The unknown concentration can be obtained through the comparison with the voltage signal of the standard solution. The electrodes will be automatically cleaned by the system buffer after the test is completed, and the next test can be performed after cleaning.

Ion-selective electrode（ISE） is a type of electrochemical sensor that can convert the changes in the activity of the ions in the solution into changes in the electrode potential, and the logarithm of the ion activity in the solution has a linear relationship with the electrode potential. “Ion-selective electrode” means that the sensor is only sensitive to specific ions. For example, the ammonium electrode is only sensitive to ammonium ions in the solution, but not sensitive to potassium and other ions.

M-1000 Bioprocess Biochemistry Analyzer Purpose

The M-1000 Bioprocess biochemistry analyzer developed by our company has a wide range of applications in a number of industries and departments such as food fermentation, biochemicals, pharmaceuticals, brewing, feed fermentation, universities, research institutes, disease control centers, and sports.

M-1000 Bioprocess Biochemistry Analyzer Features

10 test sample positions, 10 samples can be placed at the same time for automatic testing;
Supports up to 4 biochemical items +5 ion items + calculated osmotic pressure;
Two biochemical reaction cells support parallel testing to improve test speed;
Independent dilution cell with two biochemical reaction cells;
Automatic calibration to ensure the accuracy of test results;
10-inch high-definition capacitive touch screen, adjustable angle;
New interface design, more comprehensive and concise and efficient;
Sampler liquid level detection, the waste liquid with alarm function, the reagent has photosensitive detection;
Integrated reagent kit with intelligent chip management system, precise control of reagent consumption, intelligent capacity prompt;
The external flow path is connected with quick connectors;
Built-in scanning module, support consumables information update;
Glutamine reagent kit, support the instrument auto configuration;
A variety of optional test mode, support original sample mode, dilution mode, intelligent mode, etc.;
Software available U disk upgrade;
Support U disk data export;
Store up to 10,000 sample data and 1,000 calibration data, 10000 instrument log data;
Can query historical data in the process of sample testing and check the Setting;
User 4 levels management, 1 debugger, 1 administrator, 3 technicians and 11 operators;
Can choose the test items of the current sample on the test interface;
Test items and test cup positions are selected in abridged general view;
Osmotic pressure saved to the database and can be queried;
Support laser printer, thermal printer and stylus printer, independent interface, can be connected at the same time;
Connected to the upper computer, support RS232 serial interface and RJ45 network interface;
Sieman Lab-Information-System(LIS) computer software is optional, check the instrument data and status, control instrument;
With audit trail function, comply with 21-CFR-Part-11 regulation electronic records and digital signature requirements;
Optional mobile data acquisition software, check the instrument data and status, remote control instrument.

M-1000 Bioprocess Biochemistry Analyzer Technical Parameter:

Item	Test range	Precision, CV	Remark
Glucose	0.3~9 g/L	2%	Resolution 0.1g/L
Glucose	0.05~1 g/L	2%	Resolution 0.01g/L
Lactate	0.03~2 g/L	2%
Glutamate	0.03~1 g/L	2%
Glutamine	0.03~1 g/L	2%
Lysine	0.03~1 g/L	2%
Ethanol	0.03~1 g/L	2%
Methanol	0.03~0.5 g/L	2%
Glycerol	0.03~1 g/L	2%
Xylose	0.03~1 g/L	2%

pH	6.50~8.00	0.01
NH4+	2.0~30.0mmol/L	2%
Na+	60.0~200.0mmol/L	2%
K+	0.5~15.0mmol/L	2%
Ca++	0.1~5.0mmol/L	2%
Optional dilution module for automatic dilution 10-30 times Test principle: Enzyme electrode, ISE method Electrode: Single replaceable electrode Resolution: 0.01g/L; 0.01mmol/L Precision (CV%): <2% Enzyme membrane life: Glucose: ≤30 days, Lactate:≤ 30 days, Glutamate: ≤30 days, Glutamine: ≤15 days, Lysine: ≤30 days, Ethanol / methanol:≤10 days, Glycerol:≤15 days, Xylose:≤15 days, NH4+ electrode: ≥6 months, Na + electrode: ≥6 months, K + electrode: ≥6 months, Ca 2+ electrode: ≥6 months, pH electrode: ≥6 months Ambient temperature: 10~35°C Relative humidity: ≤85% (no condensation water) External dimension: 313(W)×509(H)×580(L) mm Power supply: 110V or 220V, 50Hz, 60Hz, separate three-hole socket with good grounding Power: ＜100VA Weight: 38kg Screen: 10-inch color touch screen
