S-10 Biosensor analyzer

S-10 Biosensor analyzer – Multi parameters combination, intelligent operating system, the testing speed is fast and the cost is low.

SEND YOUR REQUESTS

Contact Form Demo (#3)

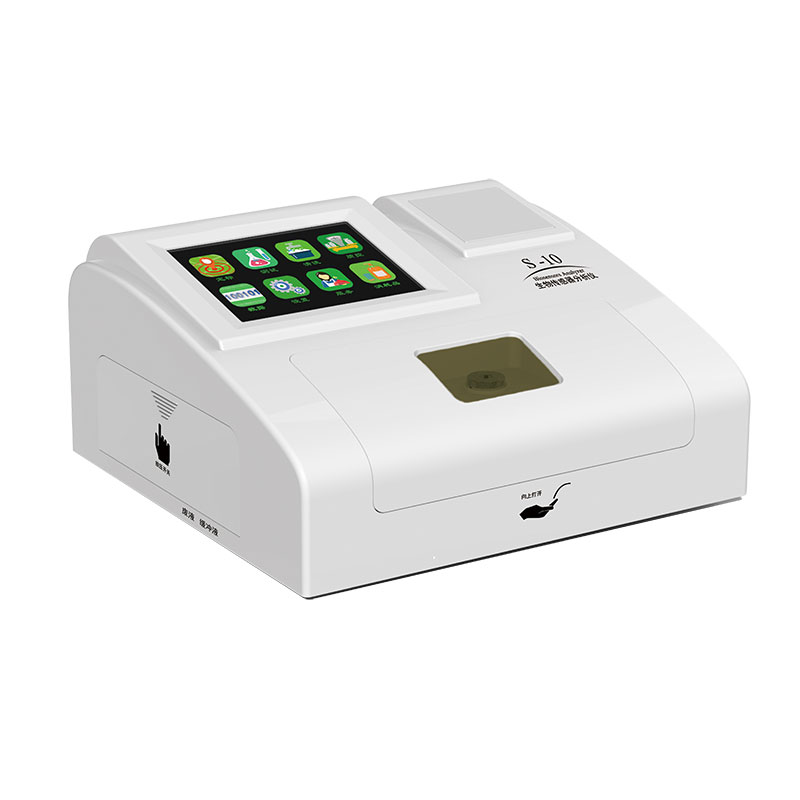

S-10 Biosensor analyzer introduction

The S-10 Biosensor analyzer is the first generation analyzer produced by Shenzhen Sieman Technology Co., Ltd. The consumables cost of S-10 is extremely low, the analysis speed is fast, 1 pc enzyme membrane can test about 2000 samples with high precision & accuracy.

Multi-channel and multi-combination testing parameters can be realized simultaneously. The volume of the test sample is only needs 25uL(Sample injection volume can be adjusted).

Software: Intelligent operating system, large icon button design, good human-computer interaction experience, perfect system self-test.

Sieman also supplies all the consumables required for the S-10 biosensor analyzer and always provides the best after-sales service.

The S-10 analyzer requires no frequent maintenance and it’s easy to use. Test results can be exported, multi-user login settings, and audit trails are supported.



For basic operation of the S-10 analyzer, please refer to the following video:



S-10 Biosensor analyzer application fields:

Biopharmaceutical bioprocess parameters analysis,

Biological fermentation metabolism parameters analysis,

Cell culture medium biochemical parameters analysis,

Food manufacturing process parameters analysis,

Laboratory research in research institutions and universities, etc.

ImageForArticle 1195 16957391812213164     petri dishes medical lab with dropper scaled 1     por 210518 digital pa quality control web



S-10 Biosensor analyzer test parameters:

Glucose,  Lactate,  Glutamate,  Lysine,  Ethanol,  Methanol





S-10 Biosensor analyzer principle

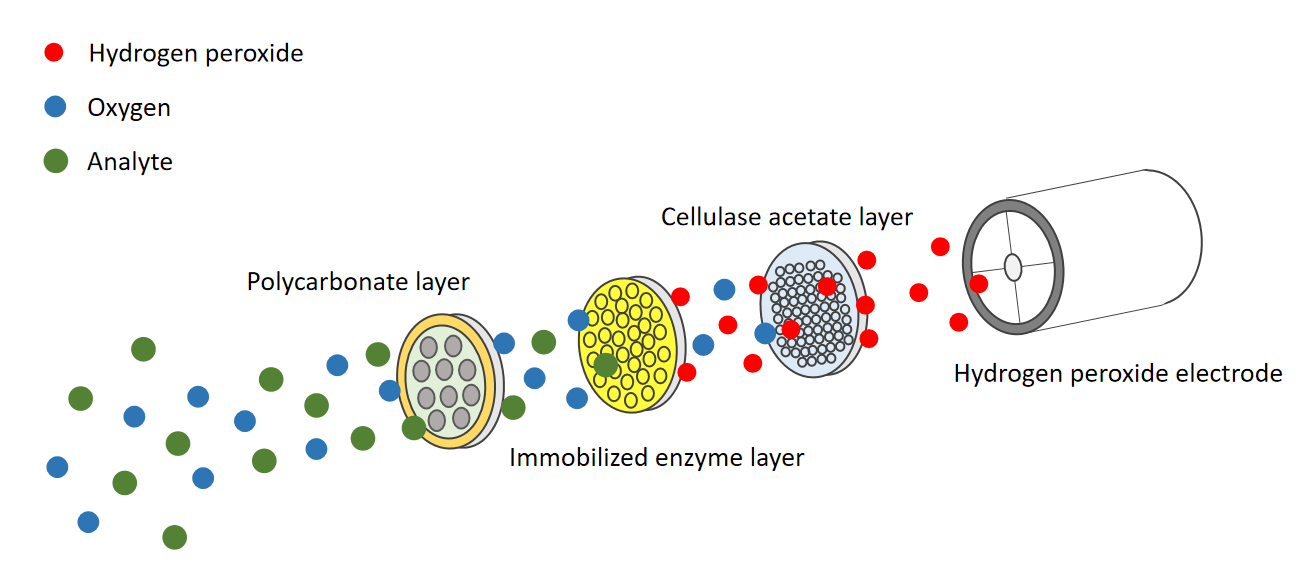

Principle

Enzyme membrane consists of Polycarbonate layer and Immobilized enzyme layer and Cellulase acetate layer, where Immobilized enzyme layer can be the corresponding oxidase of different test substrates (like Glucose). When the sample contact with the enzyme membrane in the reaction module, it will reach the Immobilized enzyme layer and catalyze the substrate of the sample to produce hydrogen peroxide. The hydrogen peroxide is measured by the hydrogen peroxide electrode and voltage signal is generated. The concentration of the tested substrate is converted from the hydrogen peroxide concentration voltage signal.



By calibrating the voltage value formed by samples of different concentrations, the concentration value of the corresponding substance of different samples can be obtained. The calibration process is divided into two processes: buffer zero (Standard A) calibration and standard liquid (standard B) calibration. The voltage value will be displayed during the calibration process, and the calibration result will be displayed as “Pass” in the status bar, indicating that the calibration is completed; otherwise, the calibration fails. After the calibration is passed, samples with different concentrations can be tested.



S-10 Biosensor analyzer features

  • Fast analysis speed, only 20 seconds analysis time
  • Simple sample preparation and test operation
  • High sensitivity and accurate results
  • Extremely reliable control system
  • Data traceability
  • Reliable performance and quality due to independent core technologies based on more than 10 years of manufacturing experience
  • Visual and intuitive operation interface, 8-inch color touch screen human-computer interaction
  • Test results being reviewed, printed and transmitted in real time
  • External reagent in low cost and easy operation
  • Professional after-sales service, mainframe warranty for one year, fast response for 2 hours maintenance, 7x24h after-sales guarantee
  • S 10 1

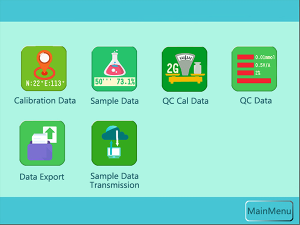

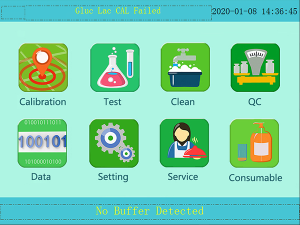

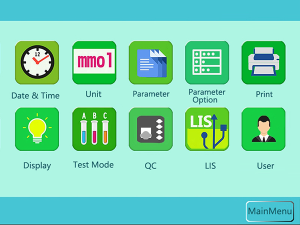

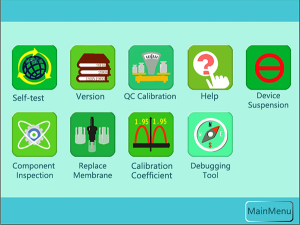

The S-10 Biosensor analyzer visual and intuitive operation interface

S-10 Semi-Automated Biosensor Analyzer (1) S-10 Semi-Automated Biosensor Analyzer (4) S-10 Semi-Automated Biosensor Analyzer (3) S-10 Semi-Automated Biosensor Analyzer (2)



Brief steps for S-10 Biosensor Analyzer operation

  1. Configure the buffer according to the buffer powder specifications, then pour the buffer into the buffer bottle.
  2. Power on the analyzer for self-test and set the correct date & time.
  3. Click “Electrode Replacement” to replace the enzyme membrane according to the manual, remember to polish the electrode surface until it’s shiny.

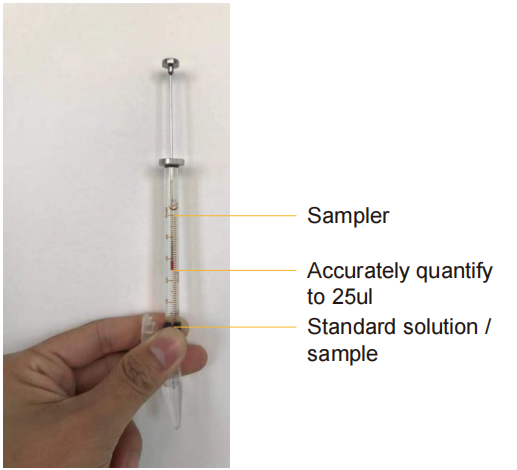

  4. Use the sampler to draw 25uL standard liquid and put it into the reaction cell for calibration.
  5. After calibration passed, use the sampler to draw 25uL sample for biochemical parameters testing.



S-10 Biosensor analyzer specifications

Test principle Enzyme electrode method
Electrode Rod electrode
Measuring range Glucose: 0.03~1 g/L, Lactate: 0.03~1 g/L, Glutamate: 0.03~1 g/L,
Lysine: 0.03~1 g/L, Methanol: 0.03~0.5 g/L, Ethanol: 0.03~1 g/L
Resolution 0.01g/L
Precision (CV%) <2%
Enzyme membrane life  Glucose: ≤30 days, Lactate: ≤30 days, Glutamate: ≤30 days,
Lysine: ≤30 days, Ethanol / methanol: 5-10 days
Ambient temperature 10~35°C
Relative humidity ≤85% (No condensation water)
External dimension 480×320×210 mm
Power supply 110V or 220V, 50Hz, 60Hz, separate three-hole socket with good grounding
Power <100VA
Weight 9kg
Screen 8-inch color touch screen

*Manual injection, may require sample dilution, please note that the pH value of the test sample meets the requirements.
